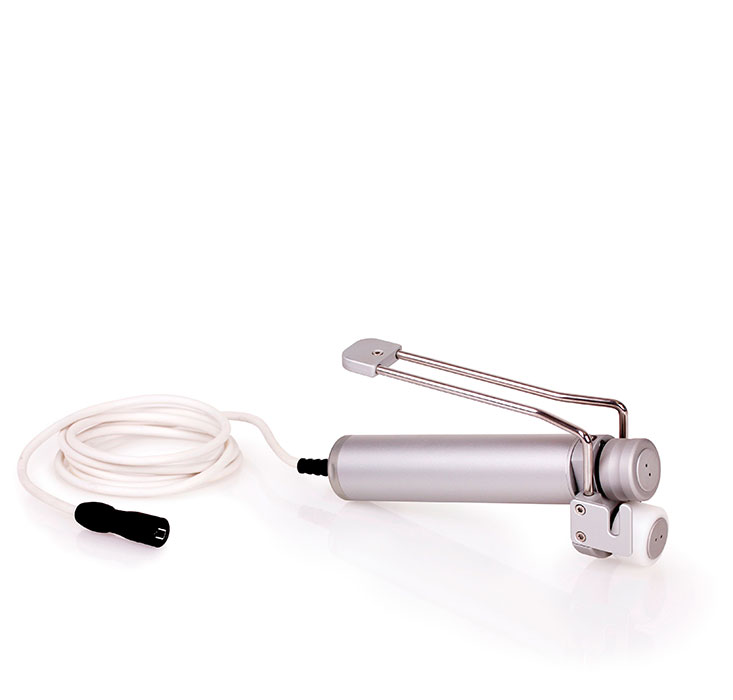

Introducing the Automatic Tube Stripper TS 08 from LMB
The Automatic Tube stripper TS 08 is specifically designed for automatic stripping of tubing used in the preparation of blood segments. This tube stripper is medical grade, lightweight, high quality compact stainless steel design.
Automatically centred tubing fed through pair of rollers by a guidance system.

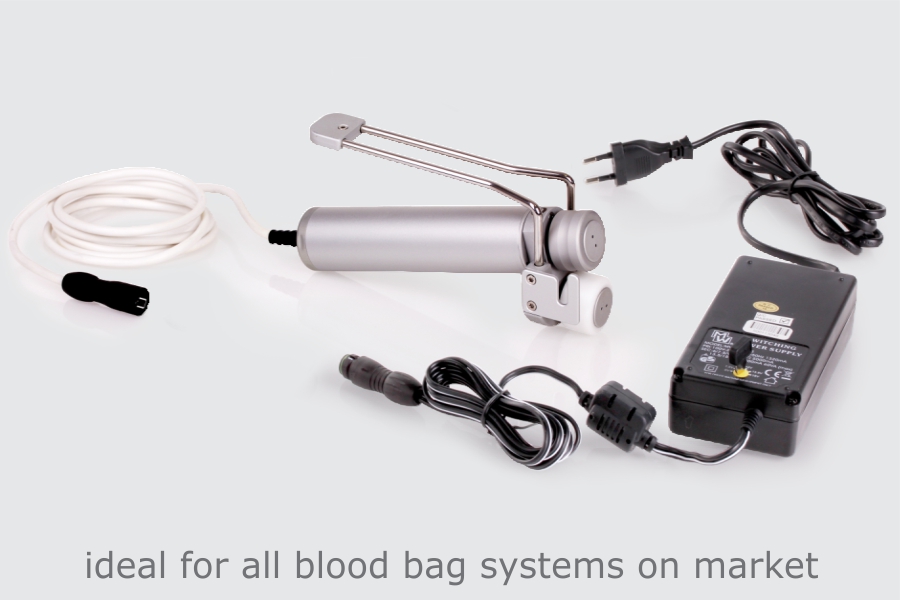

Multipurpose tool, for all types of tubing.
Features & Benefits
Technical Overview
| Automatic Tube Stripper TS 08 | |
|---|---|
| Overall dimensions (handle closed): | 75 x 57 x 195 mm |
| Overall dimensions (handle open): | 110 x 57 x 195 mm |
| Max striping tube diameter: | 6.5 mm |
| Stripping wheel diameter: | 32.5 mm |
| Stripping wheels angle opening: | 25 deg |
| Tube stripper body diameter: | 40 mm |
| Max stripping speed: | 400 mm/sec |
| Weight without power supply: | ~800 g |
| Operating temperature: | +10 +40 °C |
| Storage and transport temperature: | -20 – +50 °C |
| Power supply voltage: | 100-240 V AC |
| Input frequency: | 50 Hz / 60 Hz |
| DC motor supply voltage: | 6–15 V / 1.5 V step |
